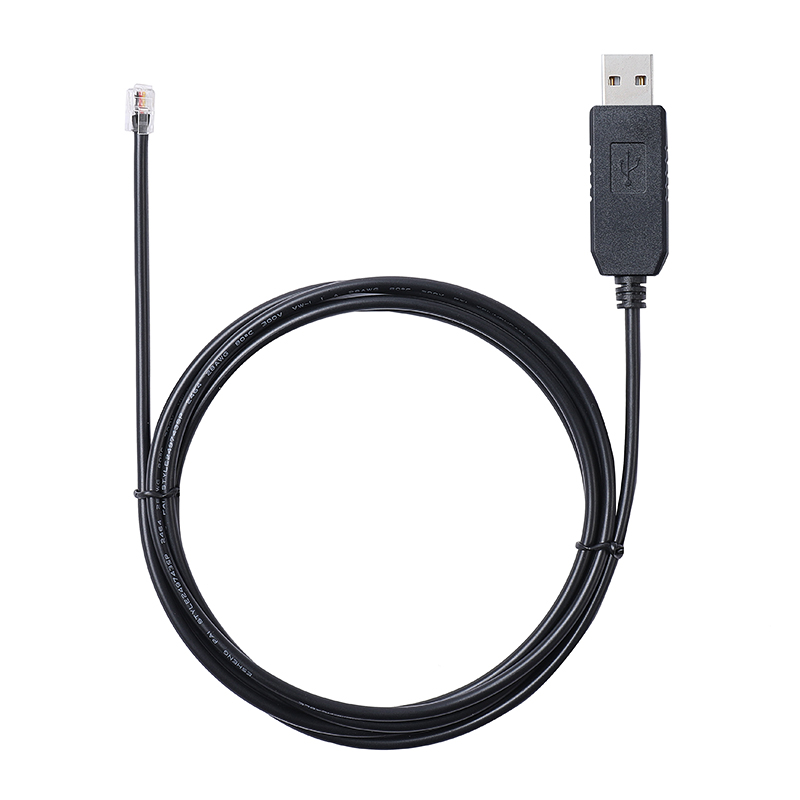

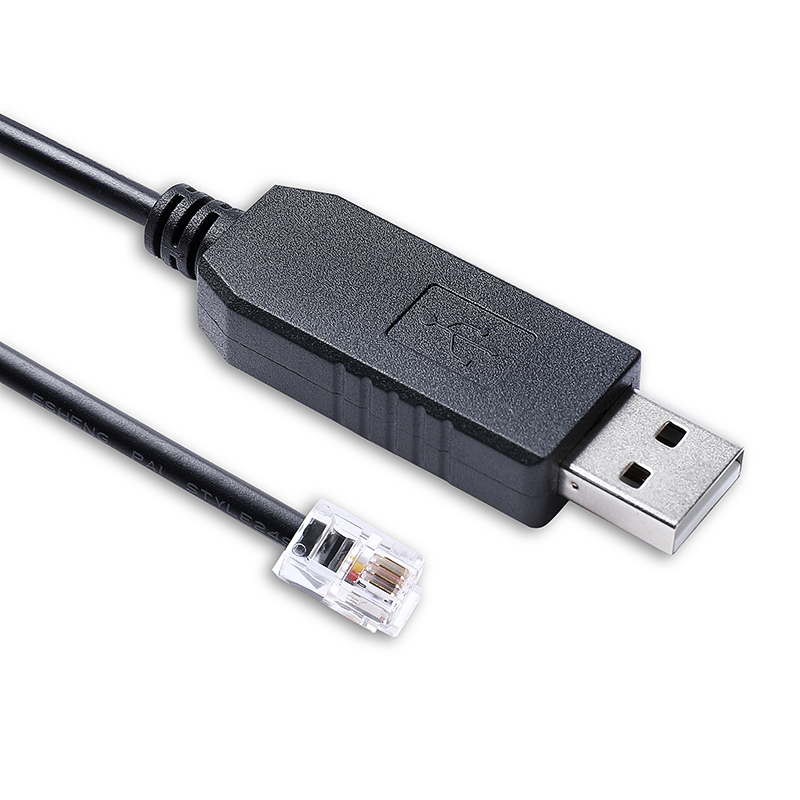

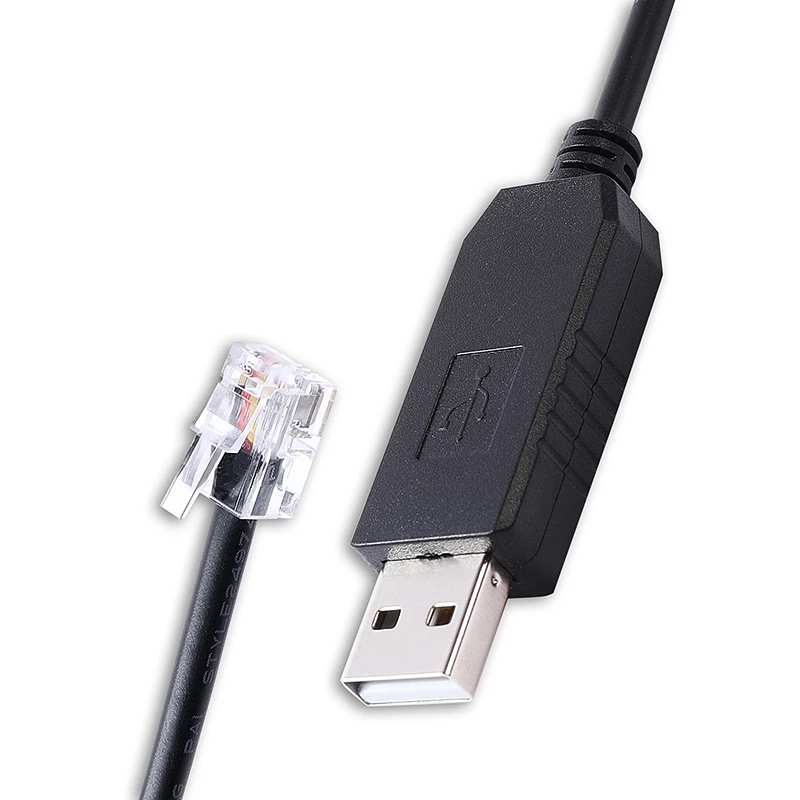

Meade 505 Cable FTDI USB RS232 Serial to RJ10 4P4C Converter Adapter Cable for Meade ETX-125 ETX-90
Meade 505 Cable FTDI USB RS232 Serial to RJ10 4P4C Converter Adapter Cable for Meade ETX-125 ETX-90 ETX-70 LXD-75 LX90
Material: PVC Outer Jacket
Cable: 28AWG*3C, OD3.5
Conductor Wire: bare copper
Color: Black
Chipset: FTDI FT232RL
Type: USB RS232 Level
Length: 100cm, 180cm, 300cm optional, other length can be customized
Connector: Nickel plated shell, gold plated contacts
Pinout wiring: 1-GND, 3-RXD, 4-TXD
Application: for connecting PC to Meade Audiostar Hand Controller
Molding: PVC material, RoHS complaint
Support: Windows 7 8 10 Android Mac Linux
Testing: 3 times electrical inspection, appearance inspection
Package: PE Bag
