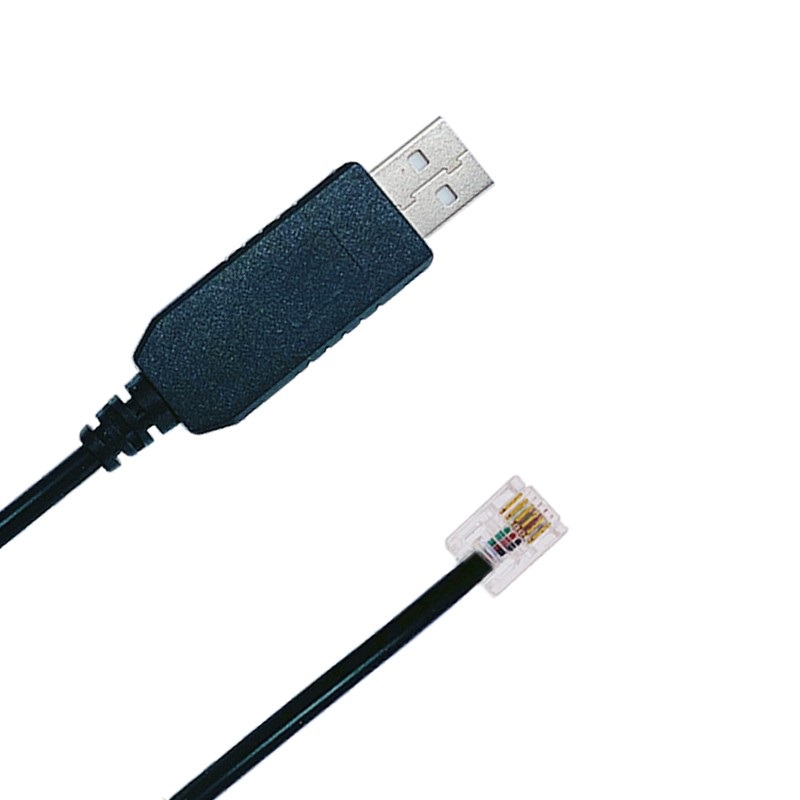

TTL 5V Console Cable USB ttl to 4P4C RJ9 RJ11 RJ12 Serial Cable

TIP:

1. TTL is available in 3.3V and 5V;
If you need different parameters, please contact us.

1) USB to TTL converter cable with a 6-pin header connector incorporates FTDI’s FT232RL chip handling all signaling and protocols.
2) The cables interface provides a simple and fast way to the connector to devices with TTL level serial interfaces.
3) The converter cable’s electronics are molded into the USB end of the cable providing baud rate speeds from 300 baud to 3M baud and 5 volts power.
4) Incorporates FTDI FT232RQ chipset
5) 6ft. long cable length
6) USB 2.0 compliant enabling 300 baud up to 3M baud
7) 6-pin header connector providing 5 volts of power
8) Provides standard TTL pinout: GND (Black/1), CTS (Brown/2), VCC(Red/3), TXD (Orange/4), RDX (Yellow/5), RTS (Green/6)

PRODUCT SPECIFICATION
