6FT USB Type C to RJ45 Console Cable with FTDI Chip FT232RL

Short Description:

OverviewQuick DetailsType:USB Cable, type-c usb cable, Flat CableCertification:RoHSUse:Mobile Phone, COMPUTER, Tablet, RouterBrand Name:ACE-CloudsModel Number:ACE-FTTC0018Place of Origin:Guangdong, ChinaUSB Type:Type-CMaterial:PVCConnector:Nickel PlatedJacket:PVC, PVC, Custom-madeProducts Status:Sto


Product Details

Product Tags

Overview
Quick Details

  • Type:

  • USB Cable, type-c usb cable, Flat Cable

  • Certification:

  • RoHS

  • Use:

  • Mobile Phone, COMPUTER, Tablet, Router

  • Brand Name:

  • ACE-Clouds

  • Model Number:

  • ACE-FTTC0018

  • Place of Origin:

  • Guangdong, China

  • USB Type:

  • Type-C

  • Material:

  • PVC

  • Connector:

  • Nickel Plated

  • Jacket:

  • PVC, PVC, Custom-made

  • Products Status:

  • Stock

  • Function:

  • Router program debugging

  • Number of Conductors:

  • 8 Cores

  • Length:

  • 0.5m, 1.8m, 3m, 5m,Custom-made

  • Color:

  • Light Blue, Custom-made

  • Chip:

  • FTDI RS232RL+ZT213

  • Conductor Material:

  • Oxygen-free copper

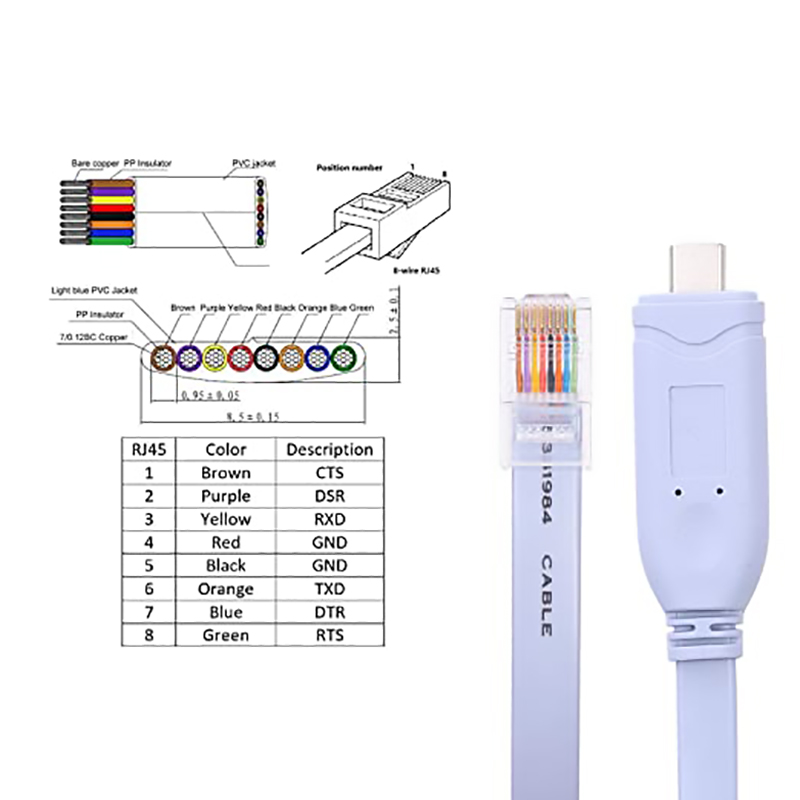

  • Pinouts:

  • 1-CTS,2-DSR,3-RXD,4-GND,5-GND,6-TXD,7-DTR,8-RTS

  • Input:

  • 8P8C RJ45 Male

  • Output:

  • FTDI RS232 USB Male

  • Compatible:

  • Plug and Play With Windows10 8 7 XP, MAC OS, Linux, Vista

  • Selling Units:

  • Single item

  • Single package size:

  • 12X12X3 cm

  • Single gross weight:

  • 0.200 kg

  • Package Type:

  • PE Bag

  • Picture Example:


  • Lead Time:

  • Quantity(Pieces)1 - 500501 - 10001001 - 2000>2000
    Est. Time(days)153242To be negotiated

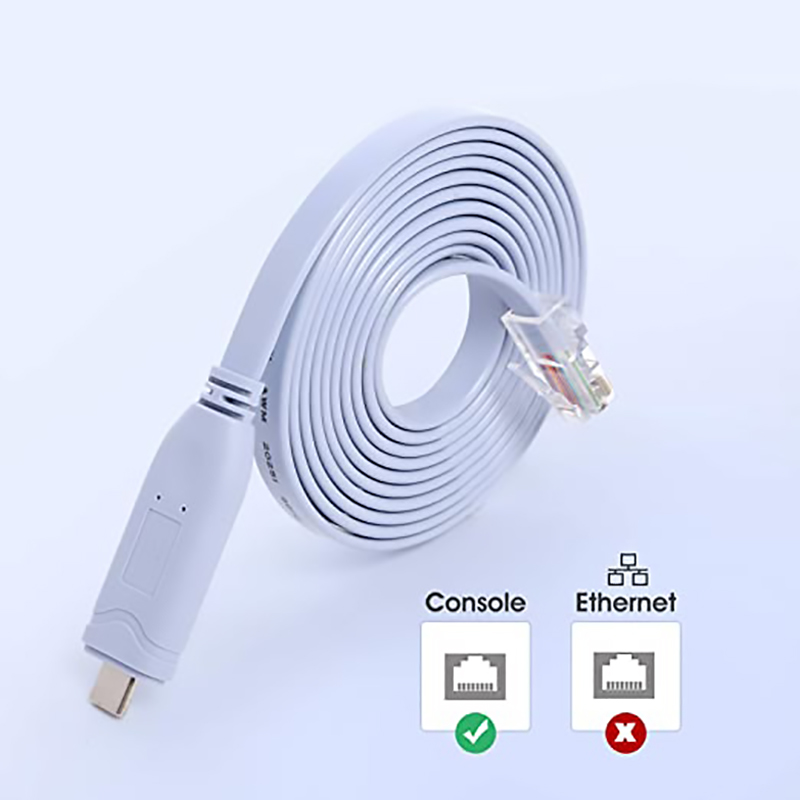

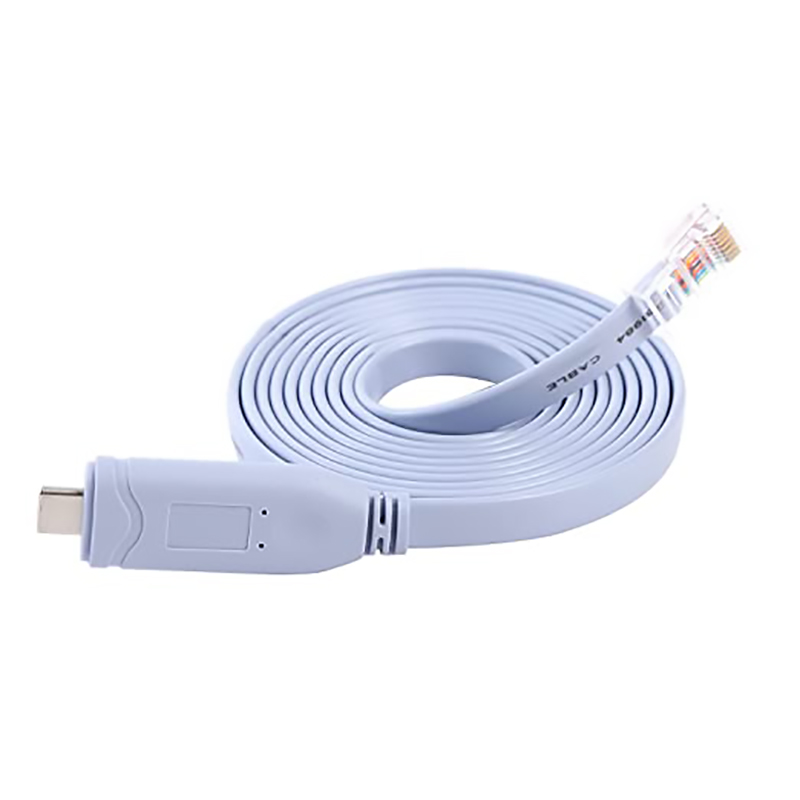

6FT USB Type C to RJ45 Console Cable with FTDI Chip FT232RL

  • USB C Console Cable connects from a USB-C port on your computer directly to a console port with Clsco modem, router, firewall, switch or other serial based with Clsco device. This is the exact cable to help you.

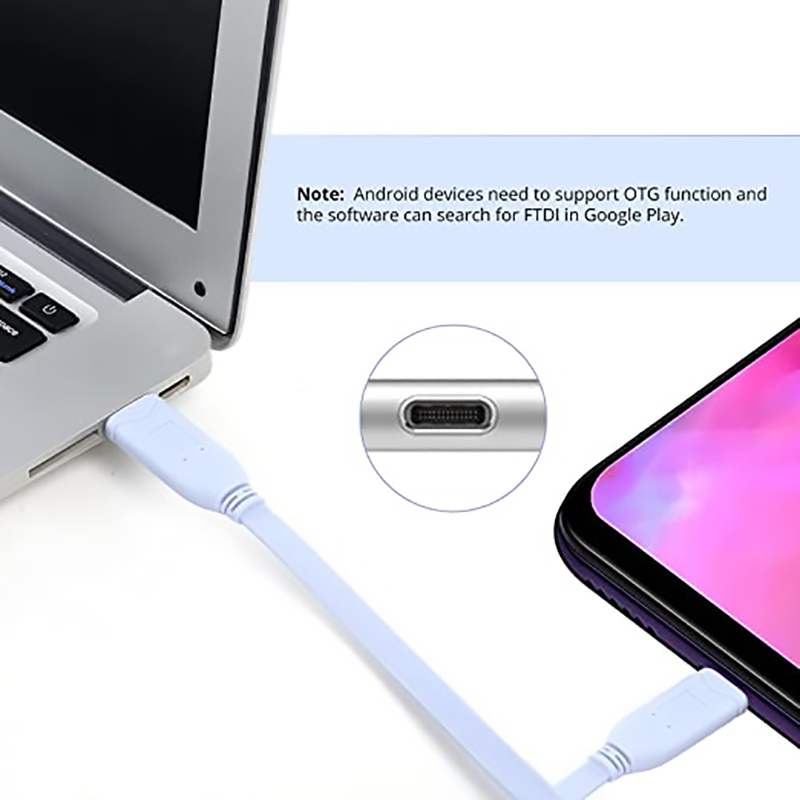

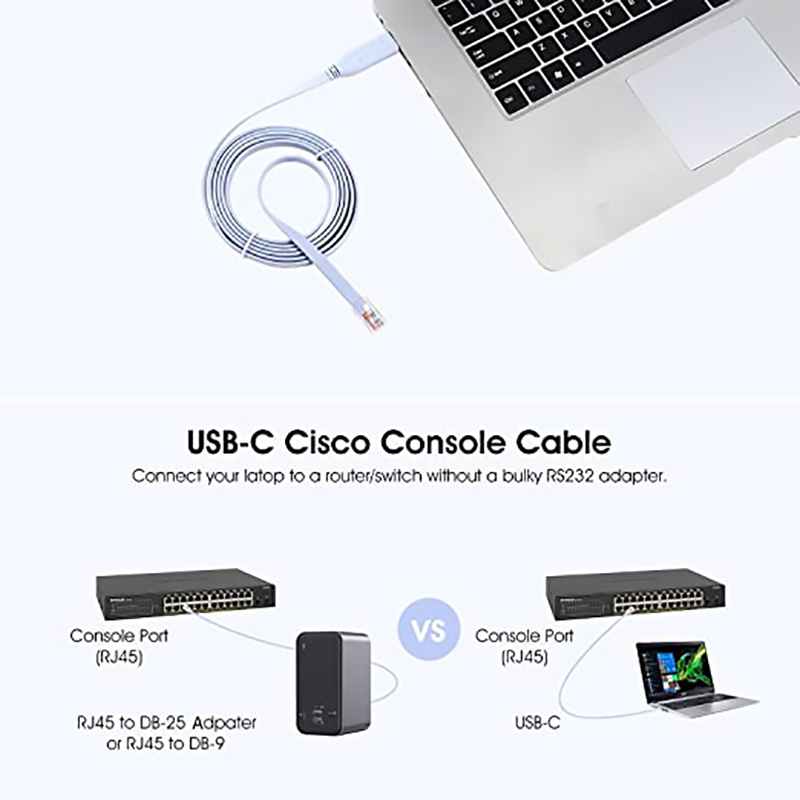

  • With Clsco Console cable replaces RS232 (DB-25/DB-9) serial port perfectly, connecting any mobile phone or laptop/PC's USB-C port directly to a console port like a charm. No more RS232 Female and male adapters.

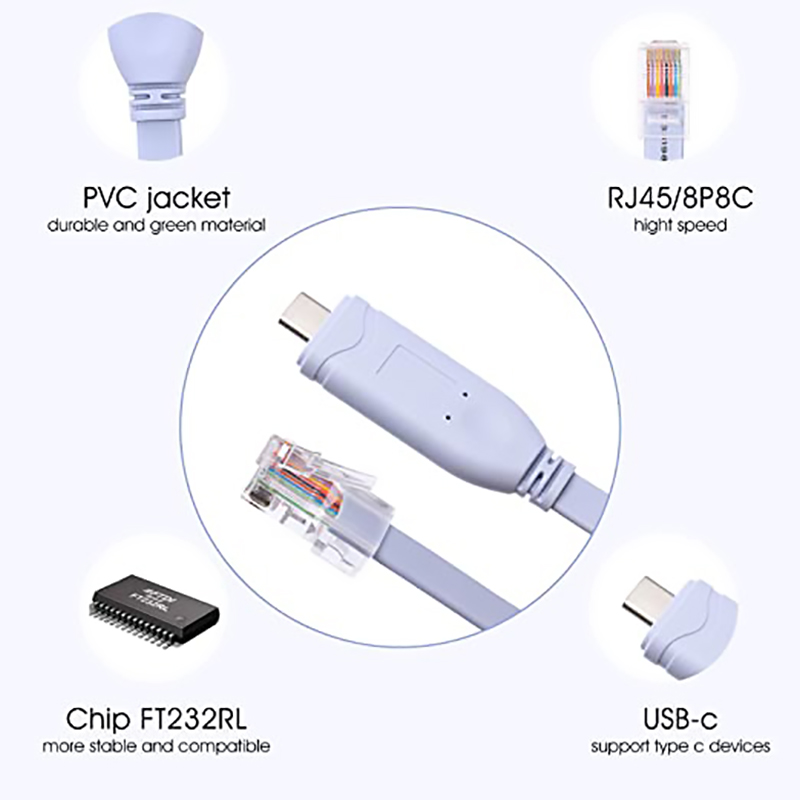

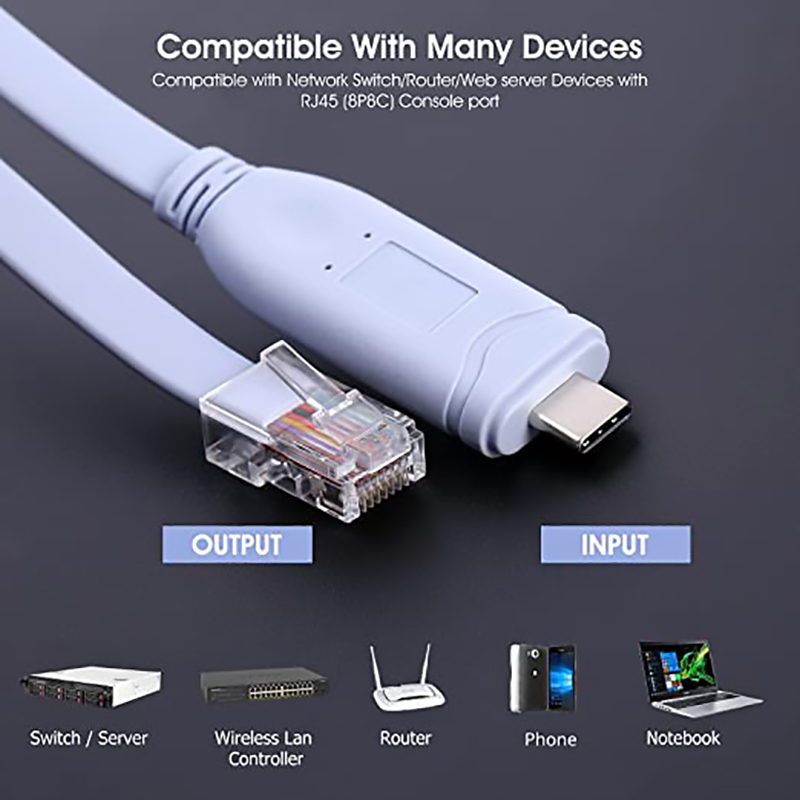

  • This Console cable built-in FTDI FT232R chip + RS232 Level Shifter, the Cable length is 1.8m (6 feet) and Custom-made. Compatible with any laptop/PC or mobile phone with a USB-C Port to Console port, such as for Clsco, Ubiquiti, Juniper, Fortigate, Mikrotik, TP-Link, Huawel, HP Procurve devices and more.

  • USB C to Rj45 cable works with Windows, Microsoft (HCL) certified to be compatible with Windows, no CD needed because the drivers are part of the OS distribution. Windows 10 will install it automatically. Windows 7 may need to download and install a driver from  m.wq7ltne.cn

PRODUCT SPECIFICATION

Length
0.5m,1.8m(6ft), 3m(10ft),5m(16.4ft),Custom-made
Color
Light Blue, Custom-made
Conductor
Bare Copper
Chip
FT232+ZT213 FTDI
Core
8 Cores
Jacket
PVC, TPE
Outer Diameter
2.5MM*8.8MM
Connector A
Type-C Male
Connector B
RJ45 Male
Certificate
ROHS/REACH/NP/CE/FCC
